CFMOTO UFORCE 800 EPS XL Trentham
Review CFMOTO UFORCE 800 EPS XL Specifications, Features & Colours Available at Virtual CFMOTO - ALL NZ
MIDDLEWEIGHT 800

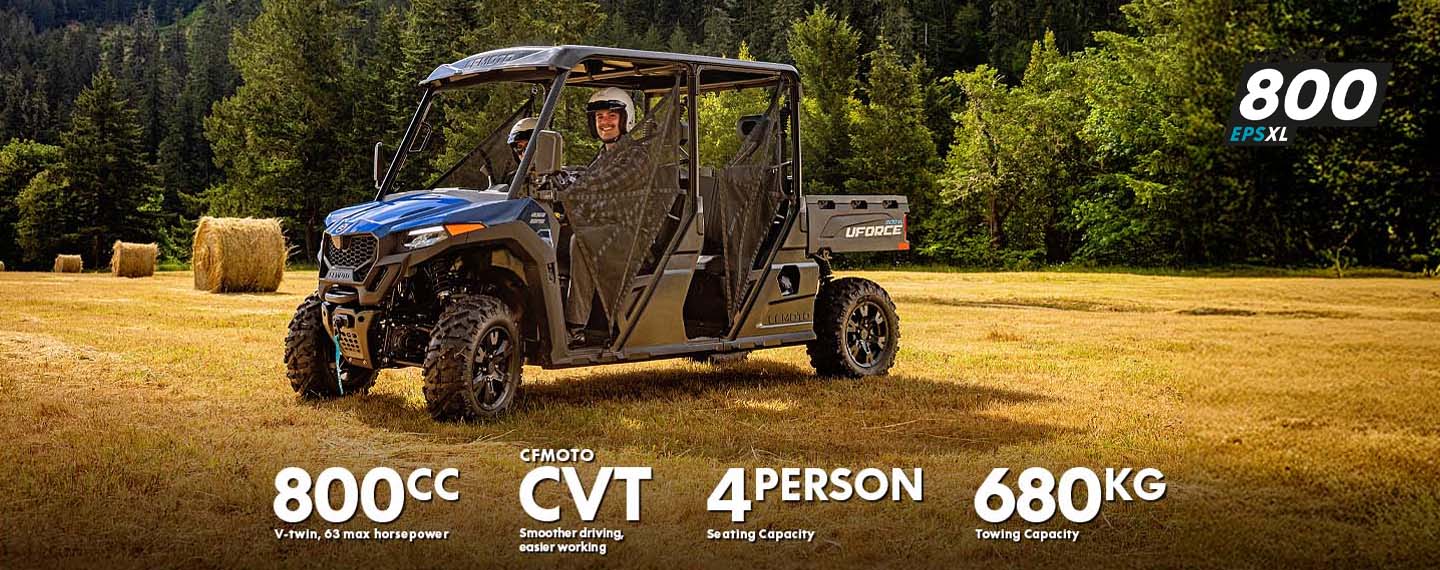

The UFORCE 800 EPS XL is CFMOTO’s middleweight XL model.
Based on the popular UFORCE 600 platform, its chassis has been extended and strengthened — including upgraded suspension, steering components and increased ground clearance to accommodate the longer wheelbase. The result is a new mid‑sized 4‑seater UTV powered by CFMOTO’s proven 800cc V‑twin engine and featuring an all‑new CFMOTO CVT system for smoother driving and easier working.
This middleweight XL model further expands CFMOTO’s growing crew range, giving customers three attractive multi‑seat options to choose from
Overseas model displayed with optional accessories.
V-TWIN POWER
Bigger power, with an 800cc V-twin engine producing 65hp to easily move your crew and more. The UFORCE 800 XL features ride-by-wire technology and has two power modes, NORMAL or WORK for a smooth and workable power output.
A new centre positioned air-intake and a new exhaust system to maximise performance.
CFMOTO CVT
CFMOTO in-house design for smoother driving, easier working. Enhanced CVT cooling, improved belt life and electronic driver alert.
Low-Speed Smoothness:
CFMOTO ‘s CVT System provides an ultra-smooth driving experience at low speeds.
Optimised Slider Design:
Steel sliders are used instead of nylon sliders, significantly reducing the impact of temperature variations on performance and longevity.
Efficient Temperature Regulation:
The CVT maintains an optimal internal temperature, tailored specifically for a Gross Vehicle Weight of 1.7 tons, outperforming competitors with internal temperatures kept below 95°C.
Overseas model displayed with optional accessories.
LONG WHEELBASE
Larger 27-inch tyres and increased suspension travel have lifted the long wheelbase UTV to provide a greater ground clearance of 300mm
ROOM FOR 4
Dual bench seat configuration with room to fit four adults, comfortably.
Handy integrated USB/12V outlets are located both front and rear, plus plenty of accessible storage areas for the crew on board.
TIME TO WORK
680kg tow capacity and a 300kg rear cargo tray capacity make the UFORCE 800 XL a serious addition to any workplace. A big 40 litre tank allows for greater range and less fill ups when on the job.
TOUGHER STEERING AND SUSPENSION
CFMOTO has factored in the increased stresses on the XL with stiffer springs and more robust steering components.
WELL-ROUNDED PACKAGE
The UFORCE 800 XL adds to the range with superior power, greater versatility, enhanced comfort and now with room to carry four.
SUPPORT YOU CAN TRUST
CFMOTO is a brand you can rely on. The UFORCE 800 EPS XL is backed by a two year warranty and supported by a national dealer network to keep you going 24/7.
Specifications
Towing capacity
680kg
Cargo tray capacity
300kg
Roll Cage
ROPS-certified
Fuel Capacity
40L
Persons
Four
Engine type
V-twin, liquid cooled, 4-stroke, SOHC, 8-valve
Displacement
800cc
Maximum power
63hp at 7,000rpm
Maximum torque
69.8Nm at 5,500rpm
Fuel system
Bosch EFI with two power modes NORMAL or WORK
Transmission
CFMOTO CVT
Drive
H-L-N-R-Park
4WD
2WD/4WD
Differential
Fixed rear differential
Downhill Assist
Electronic assist hill descent control (DAC)
Steering
Power steering (EPS)
Suspension front
Dual A-arm, with 225mm of travel
Suspension rear
Dual A-arm, with 225mm of travel
Shock absorber
Shock absorbers with compression/rebound adjustment
Brakes
All four hydraulic disc brakes
Wheels
14-inch alloy rims
Tyres
27-inch tyres
Dimensions (L/W/H)
3640 x 1525 x 2007mm
Cargo tray (D/W/H)
870 x 1300 x 275mm
Wheelbase
2770mm
Ground clearance
300mm
Wet weight
775kg
Colours
Twilight Blue
Winch
4500lb with nylon rope
Warranty
Two Year Warranty
Gallery
Colours
Twilight Blue
$20,990*
*Offer valid from 01/07/2026 to 30/09/2026. Ride away prices quoted exclude GST.
